20W 30W 50W 100W RGB RGBW DMX DMX512 LED Flood Light
SKU: ZL-FL-JB
✪ Power: 20W/30W/50W/100W.
✪ Using high quality RGB / RGBW LED chips with high brightness, good color effect, low heat and no flicer.
✪ Using strong isolated constant current IC LED driver, working very stably and has long lifespan.
✪ Support multiple color changing effects: Flashing, Strobing, Jumping, Fading, Smoothing, etc.
✪ The whole light is outdoor IP65 waterproof.
✪ Support very narrow beam angles from 5 to 120 degree.
✪ Support DMX function. Customizable wireless solution, RF remote control solution and mobile phone App control solution.
✪ 3 Years warranty.
Specifications
| Model No. | ZL-FL-JB |
|---|---|
| Power | 20W/30W/50W/100W |
| Input Voltage | AC100-277V |
| LED Brand | EPILEDS |
| LED Model | High Power |
| CCT | RGB / RGBW |
| Driver Type | Isolated Constant Current IC Type |
| PF | >0.95 |
| Materials | Die-casting Aluminum + Lens + Tempered Glass |
| Beam Angle | 5°/10°/15°/30°/45°/60°/120° |
| IP Rating | Outdoor IP65, IK08 |
| Dimension | 285*230*180mm |
| Weight | 2.3KG |
| DMX Function | Support |
| Wireless Function | Customizable |
| Mobile App Control Function | Customizable |
| RF Remote Control Function | Customizable |
| Lifespan | 50,000 Hours |
| Working Temp. | -40°C~60°C |
| Lifespan | 50,000 Hours |
| Warranty | 3 Years |

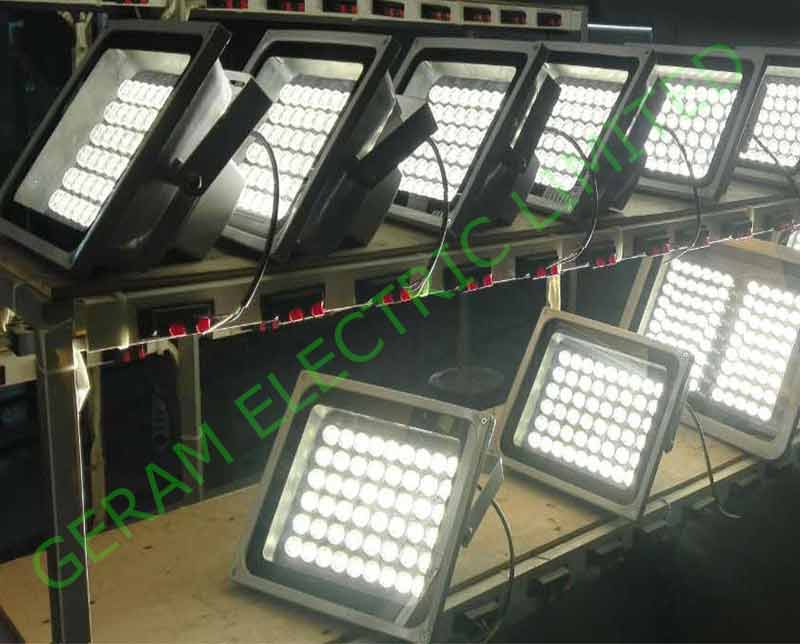

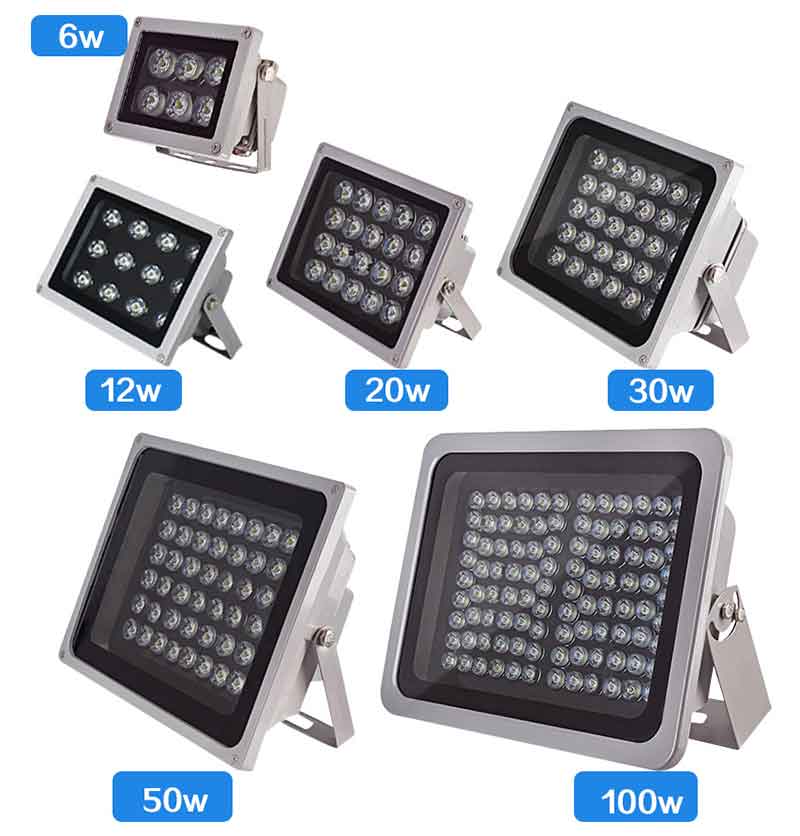

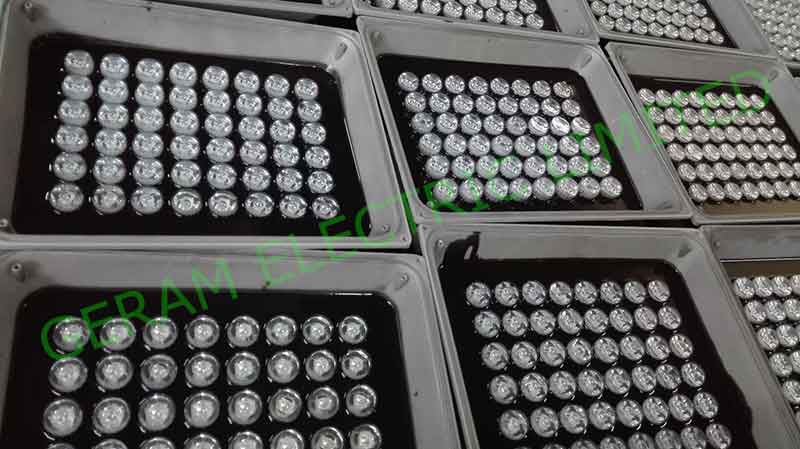

Product Show

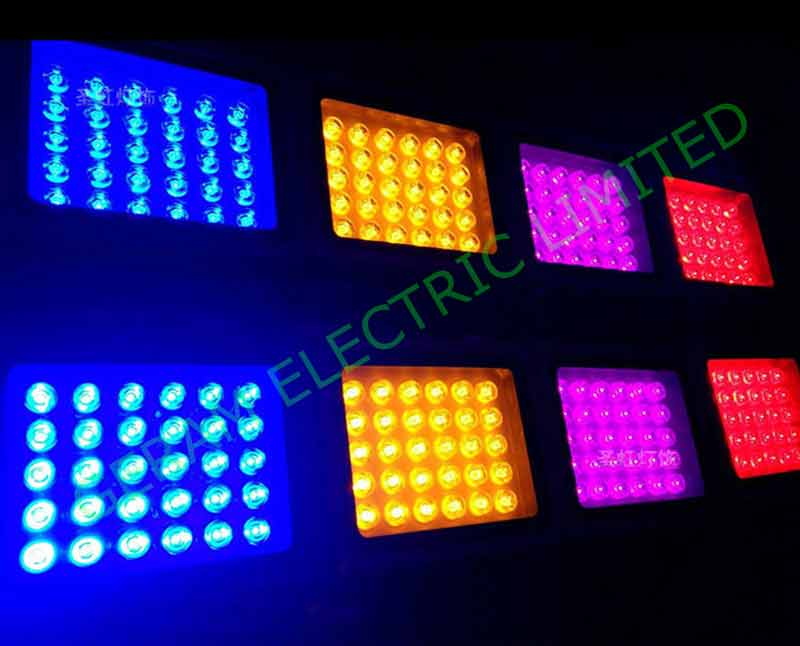

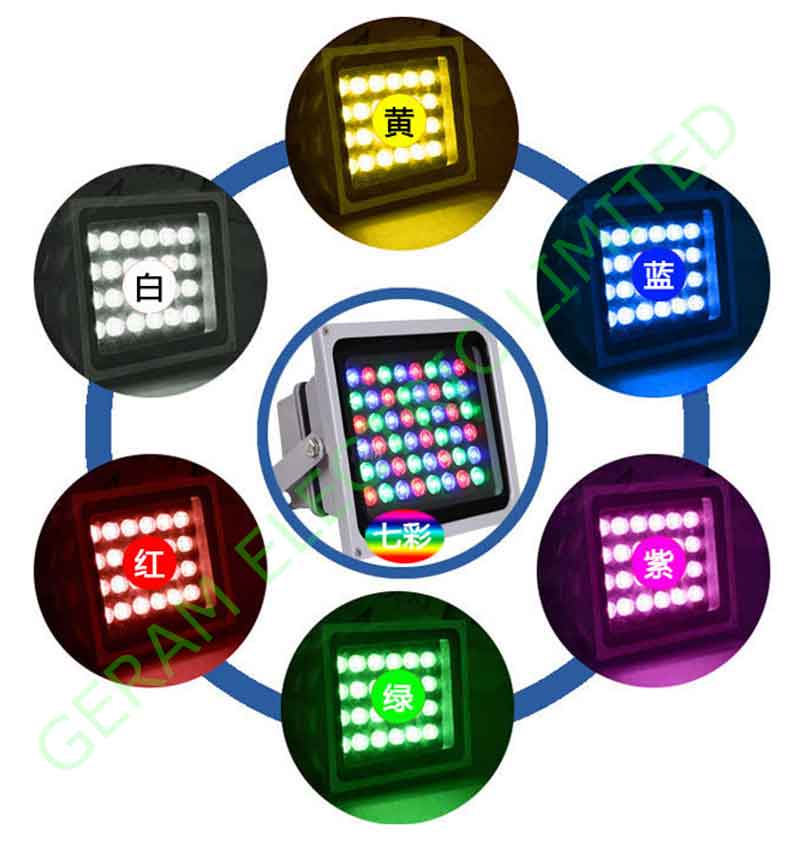

Color Changing Effects
Our RGB / RGBW DMX LED flood light supports multiple color changing effects, such as jumping, fading, flashing, strobing, smoothing, etc. If by using with a DMX controller, our lights can generate more complicated color changing effects.
DMX512 Function
Our DMX flood light has built-in DMX512 decoder, it supports standard DMX512 protocol and can work with DMX512 controller directly. You can use our controller, or use your own controller, or buy any other controllers in your local market. If without DMX512 controller, our lights will run the default internal program.

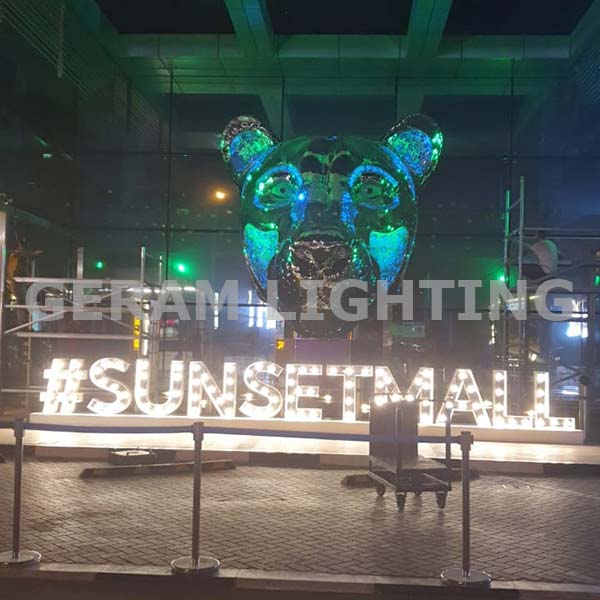

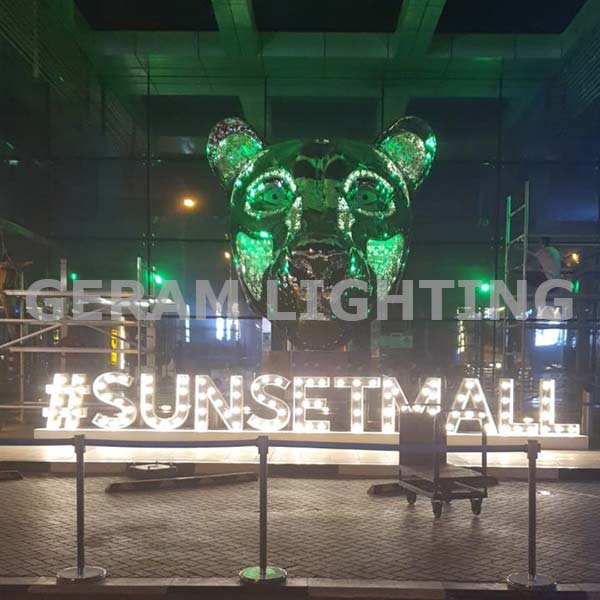

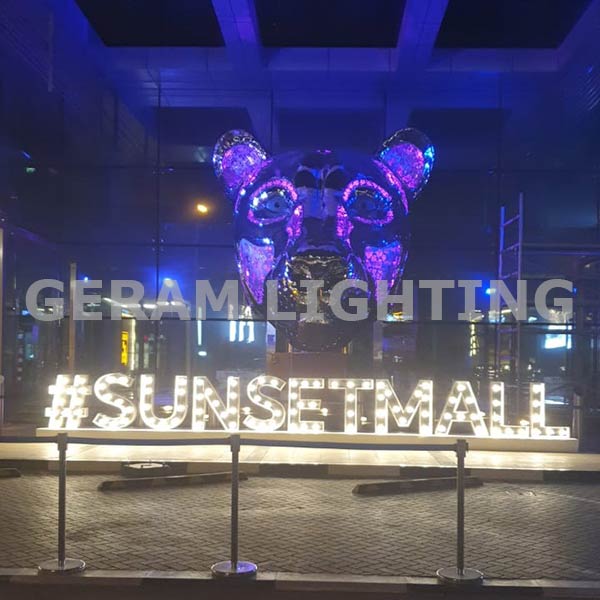

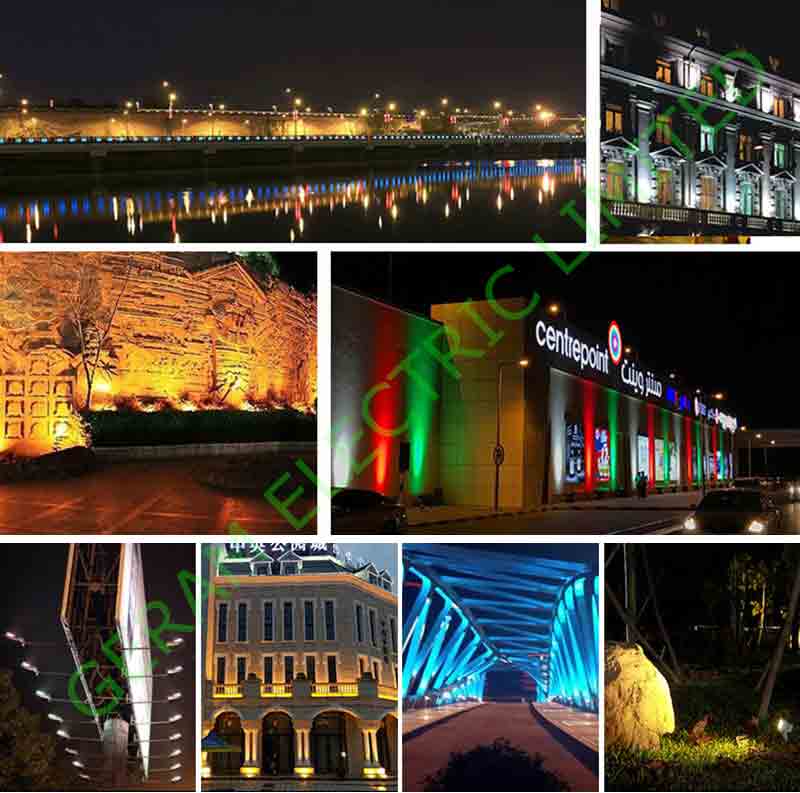

Applications
Our RGB / RGBW DMX LED flood light is widely used in commercial building, garden, square, bridge, housing estate, landmark building, amusement park, hotel, tower, church, dock, pitch, etc.
Installation
Our DMX flood lights has 3 kinds of installation types, one is wired installation, one is wireless installation, one is compatible installation(the combination of wired & wireless solutions).
1. Wired Installation
2. Wireless Installation
3. Compatible Installation
Certificates
Our RGB / RGBW DMX LED flood light has obtained a series of certificates such as CE, EMC, LVD, RoHS and FCC, etc. If you has special requirement, you can also tell us directly.
